Classic T-Bone Truck Bed Extender
BDX-TBTO
- Suspenz: Copied by Many Matched by None®

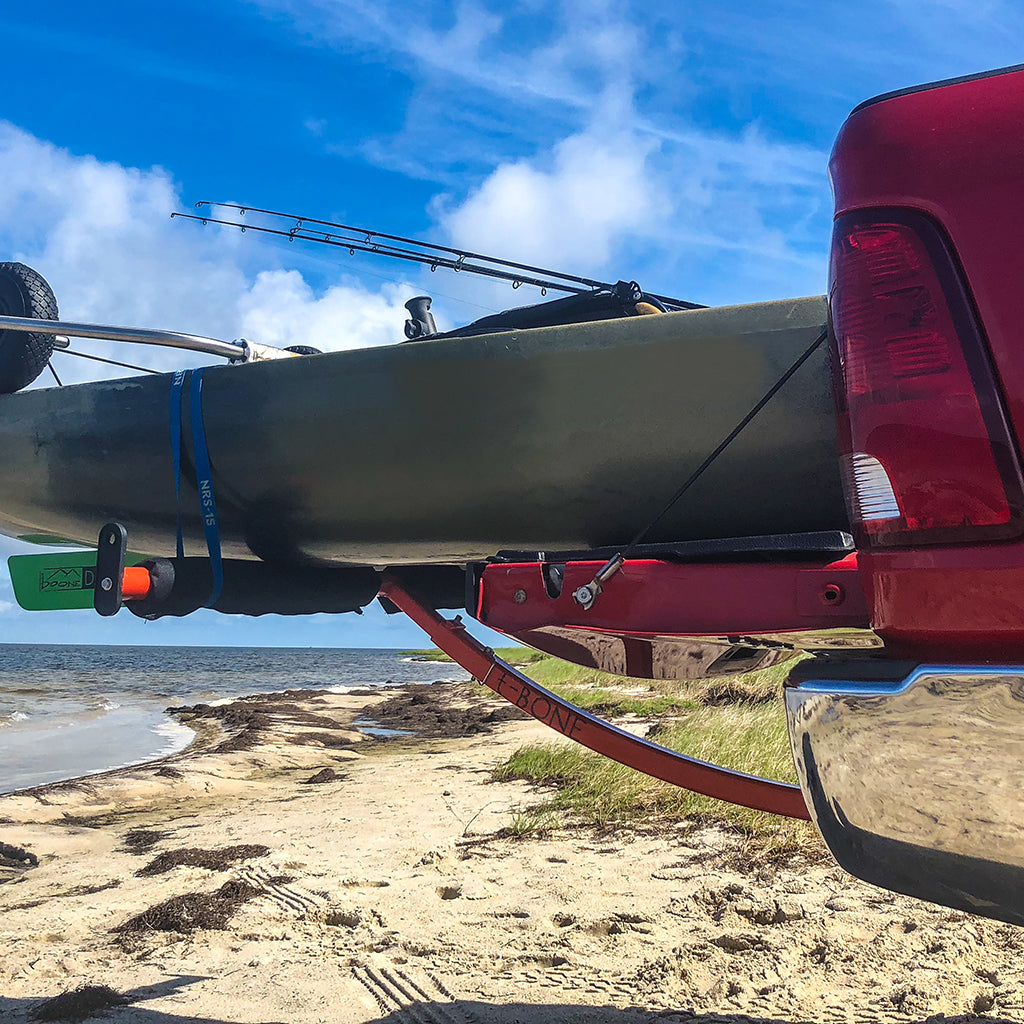

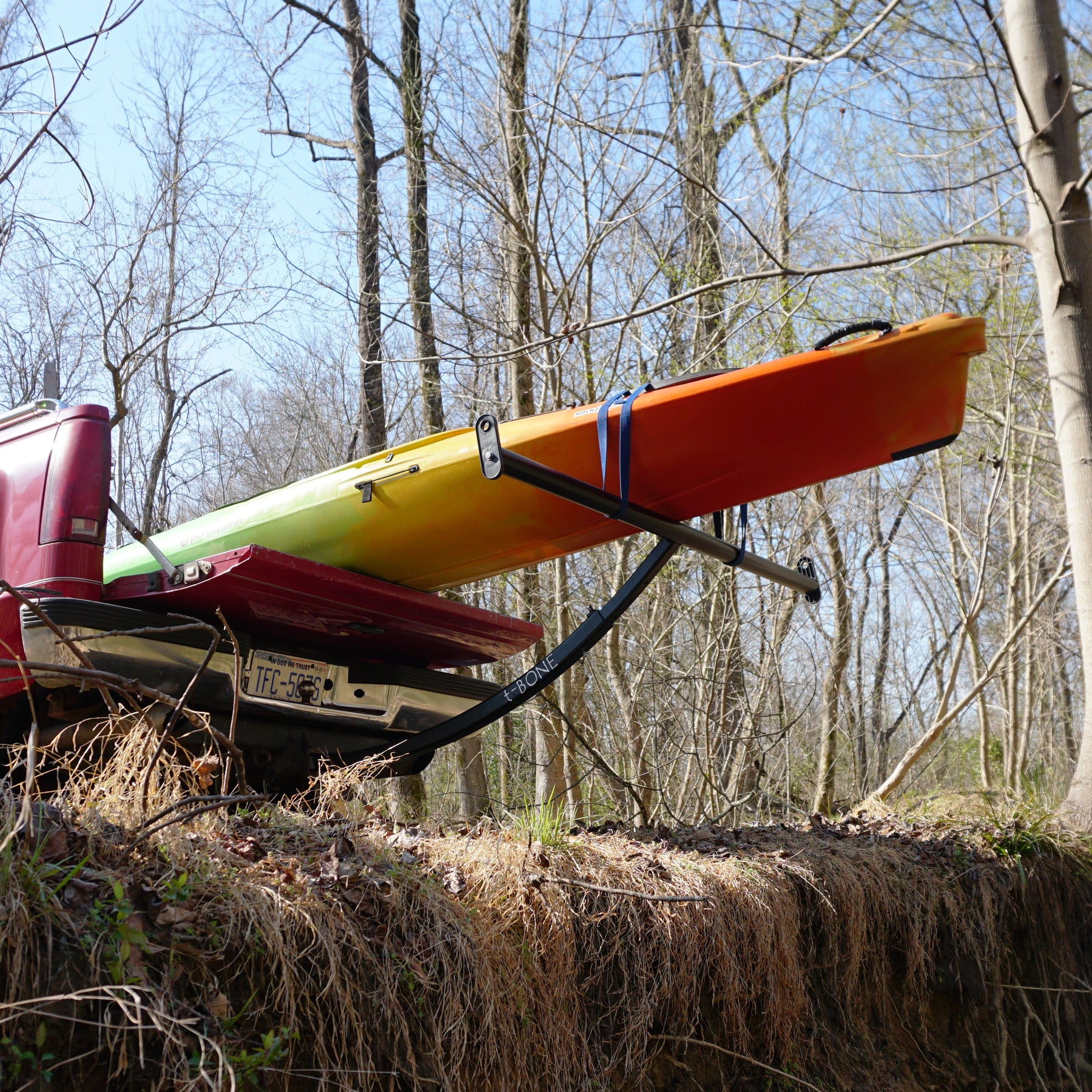

The Classic T-Bone Truck Bed Extender's unique curved design prevents damage to your kayak or canoe when going over steep or rocky terrain and boat launches. Adds up to 4 ft. of extension to the end of your truck bed allowing you to carry kayaks, canoes, lumber or other long items easily.

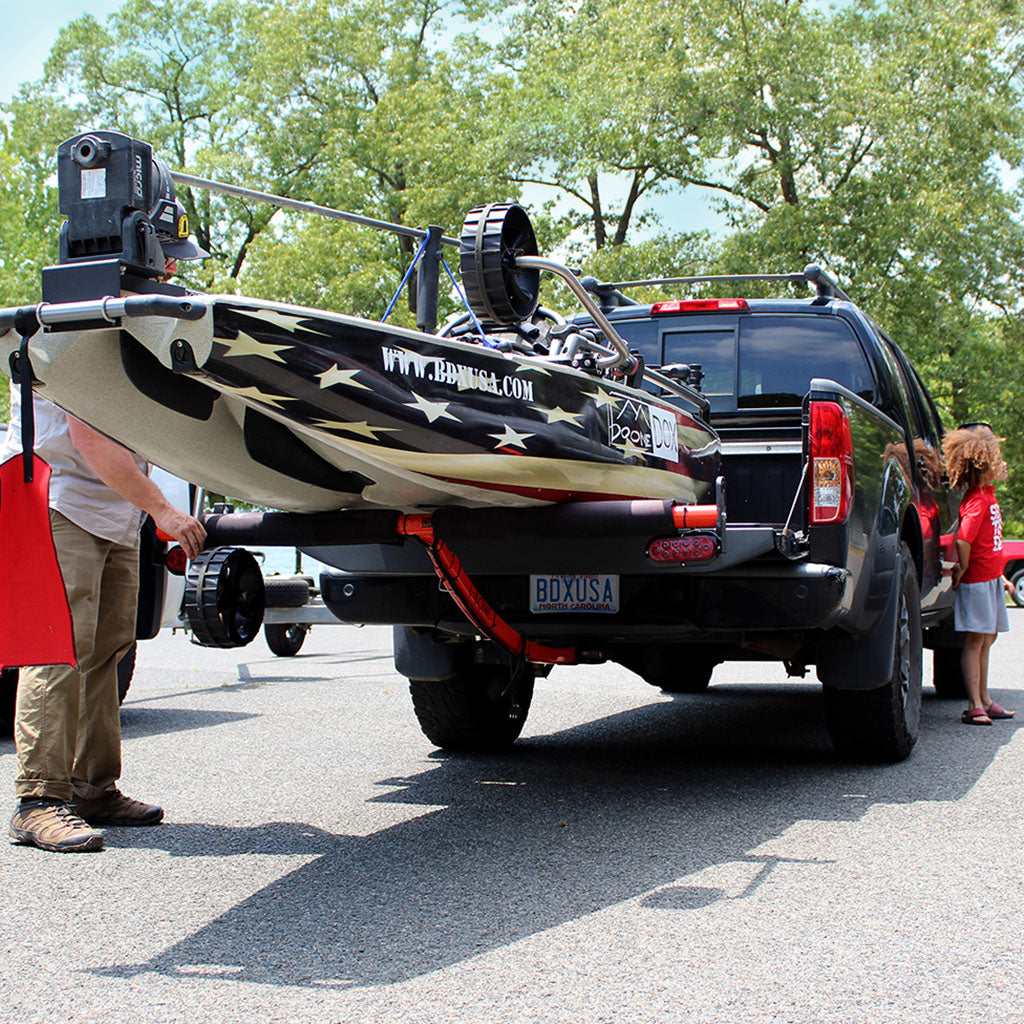

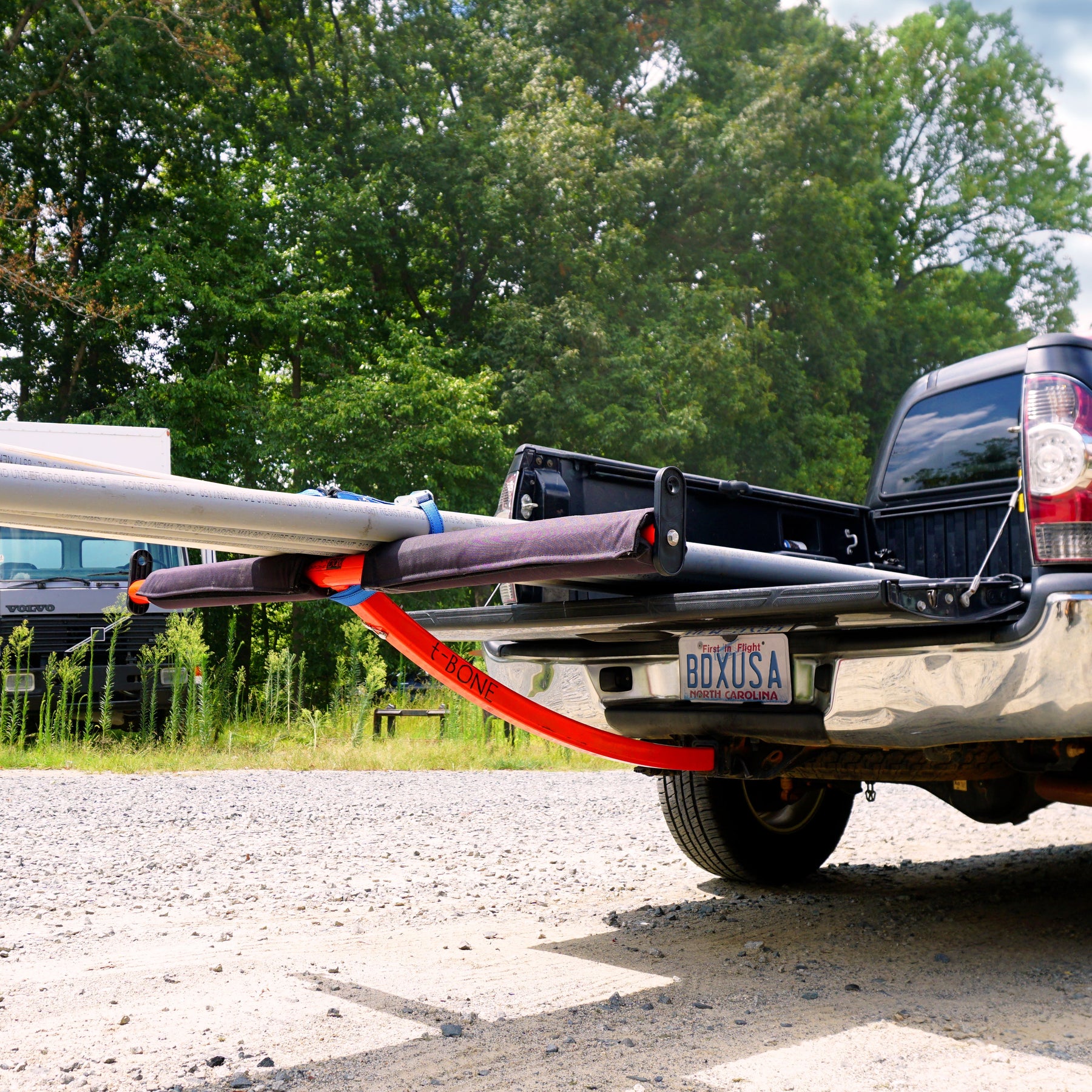

The Classic T-Bone Truck Bed Extender by Boonedox is a hitch-mounted accessory designed to extend the usable length of a pickup truck bed by about 4 feet. It’s especially made for hauling long items like kayaks, canoes, lumber, or gear that overhangs the bed.
Key Features & Specs
| Feature | Description |
|---|---|
| Material | Aircraft-grade aluminum (won’t rust). |
| Weight | About 16 lbs. |
| Load Capacity | Up to 300 lbs. |
| Extension Length | Adds ~48" beyond the truck bed. |
| Cross-bar width | 60" wide. |
| Adjustment | Height from top of hitch receiver to top of the extendee is adjustable between ~13.25" to ~19". |

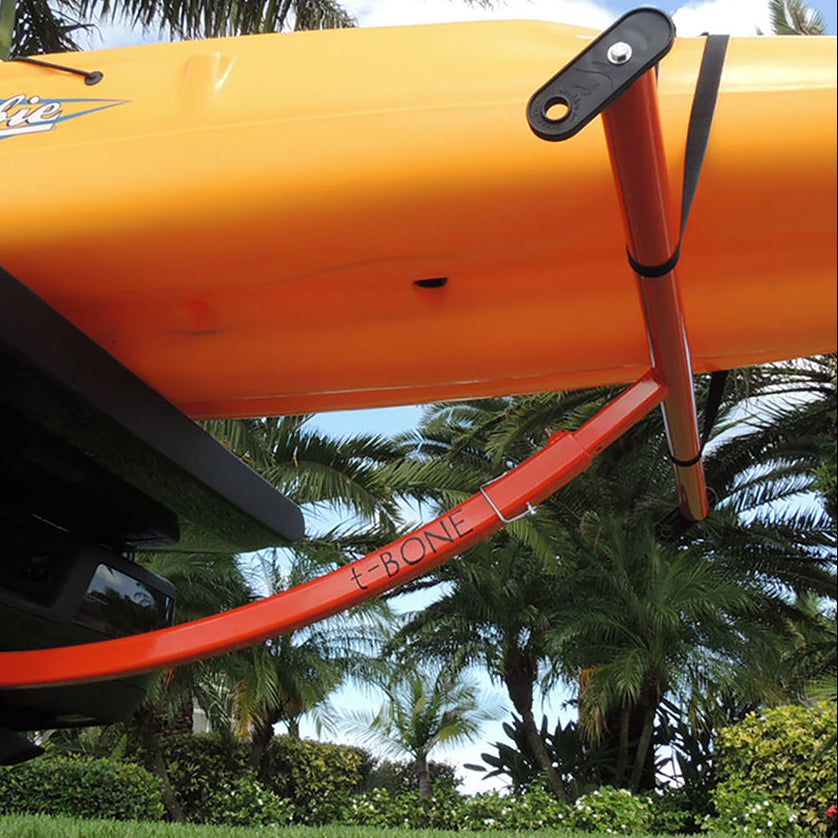

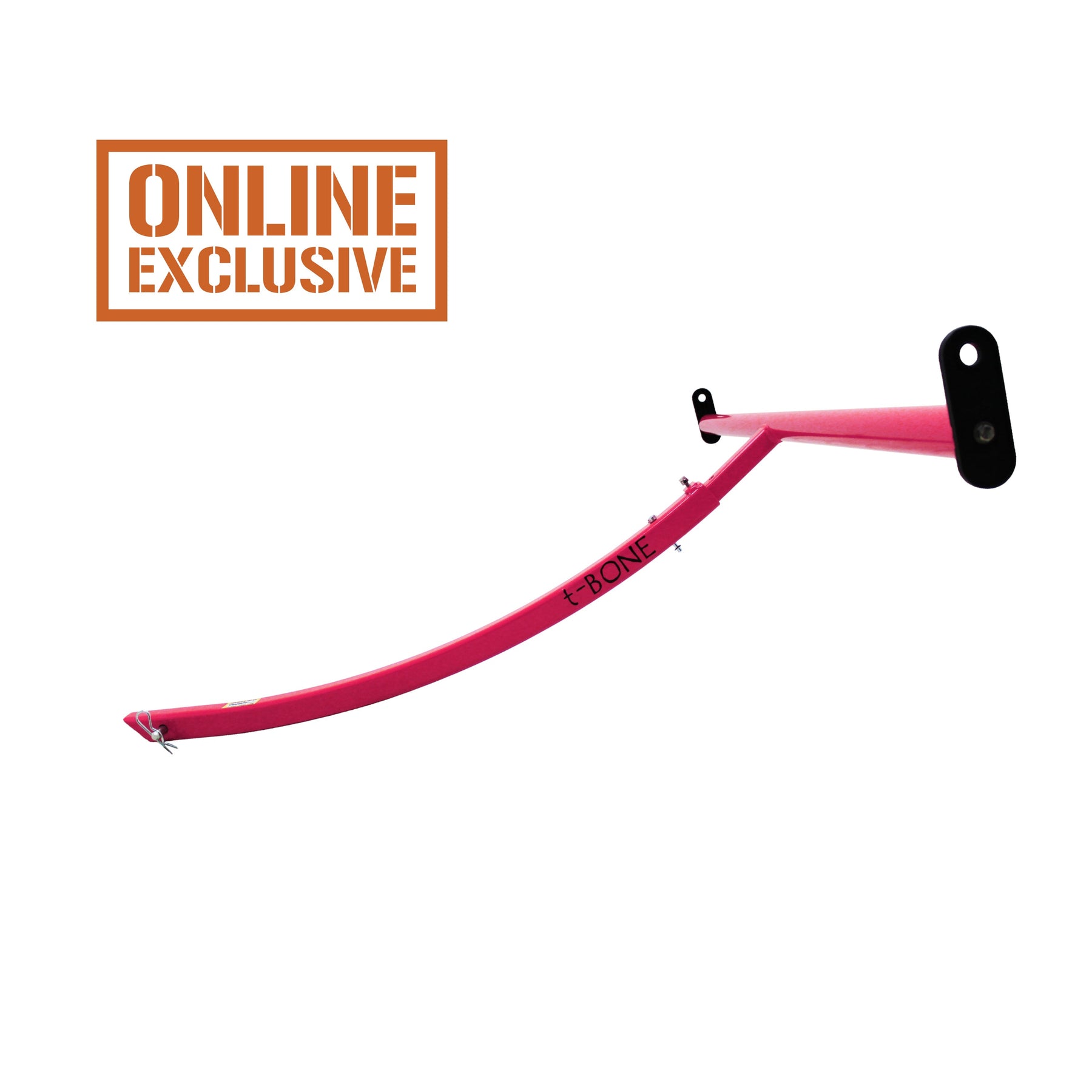

| Design | Curved design to prevent damage to boats/kayaks when loading off steep or rough terrain. |

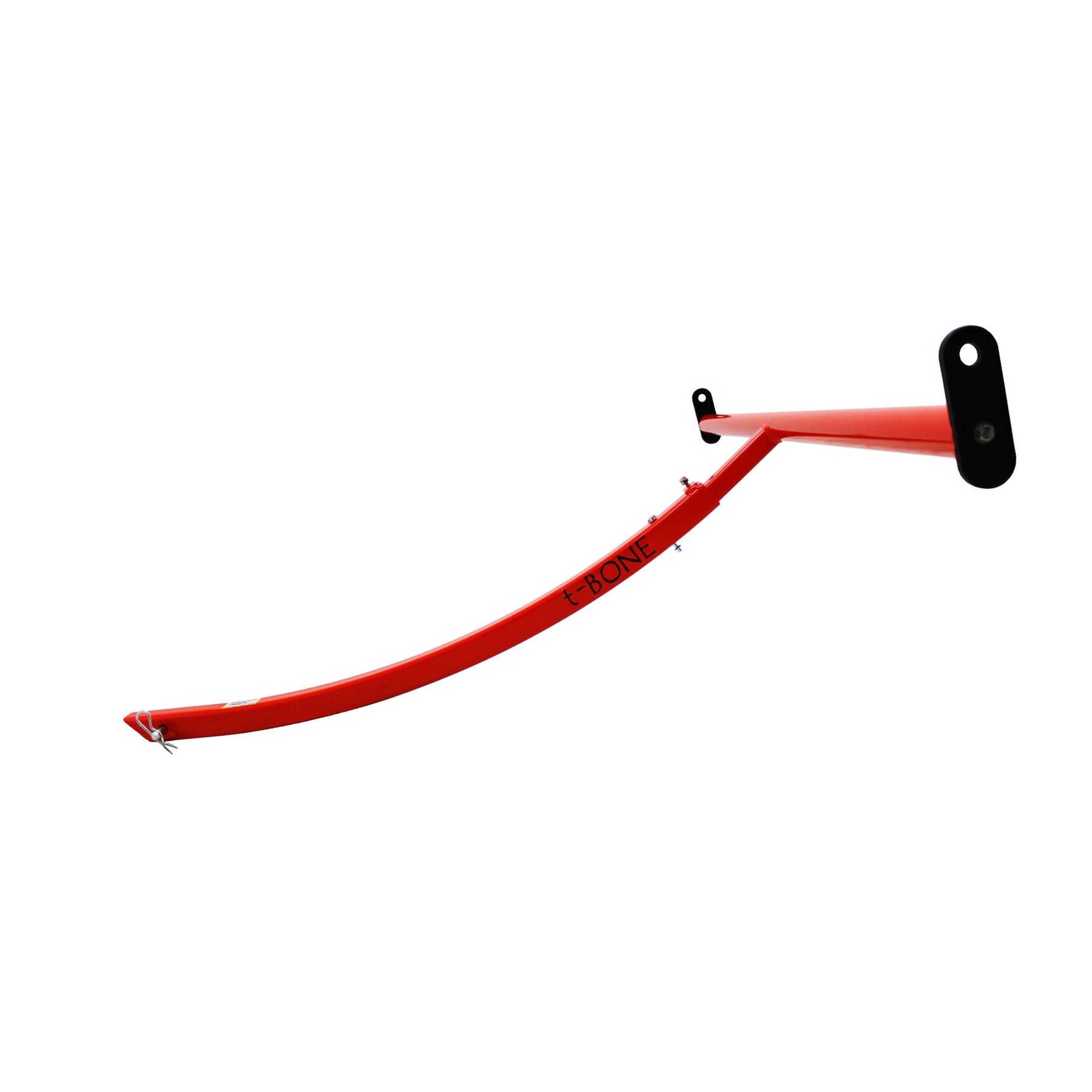

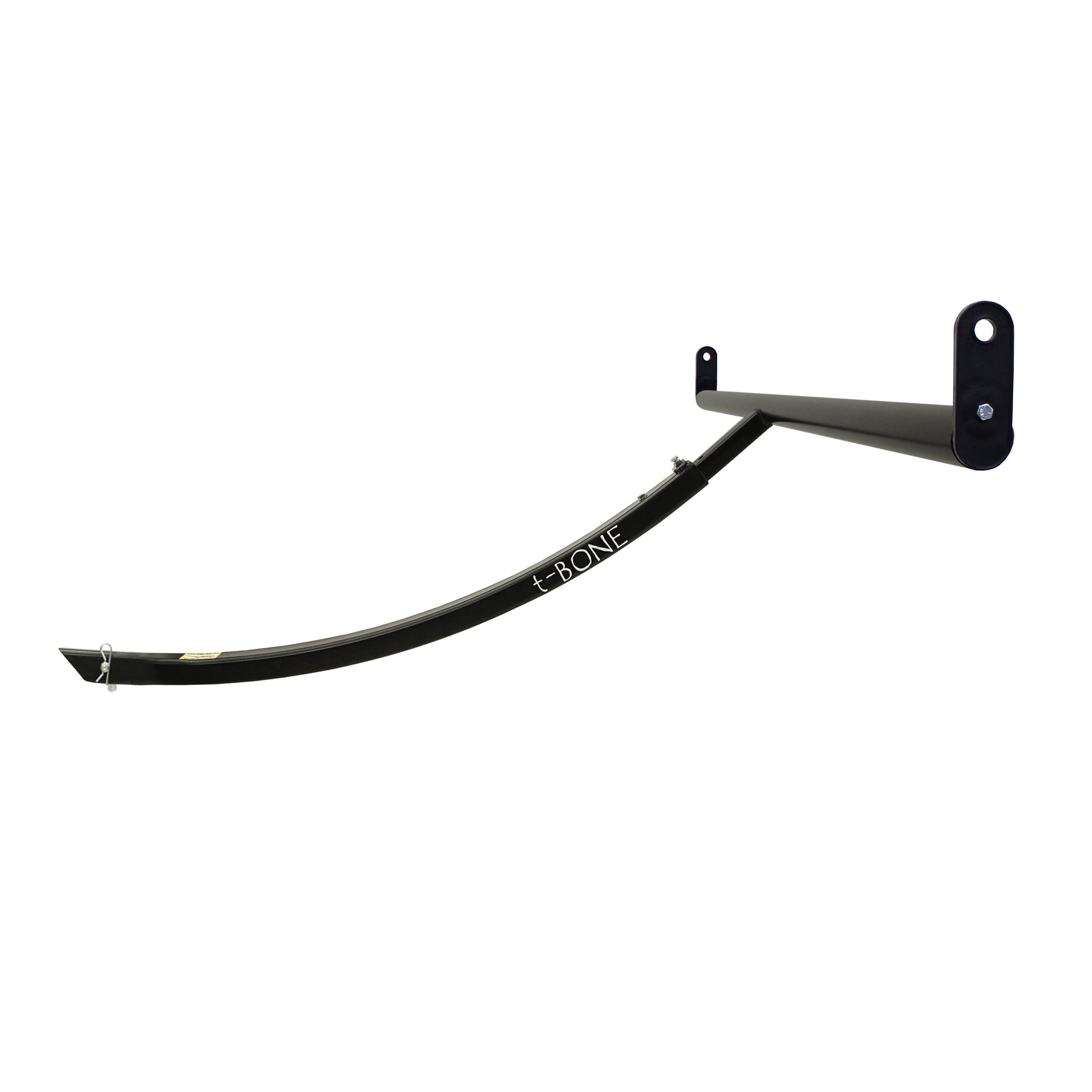

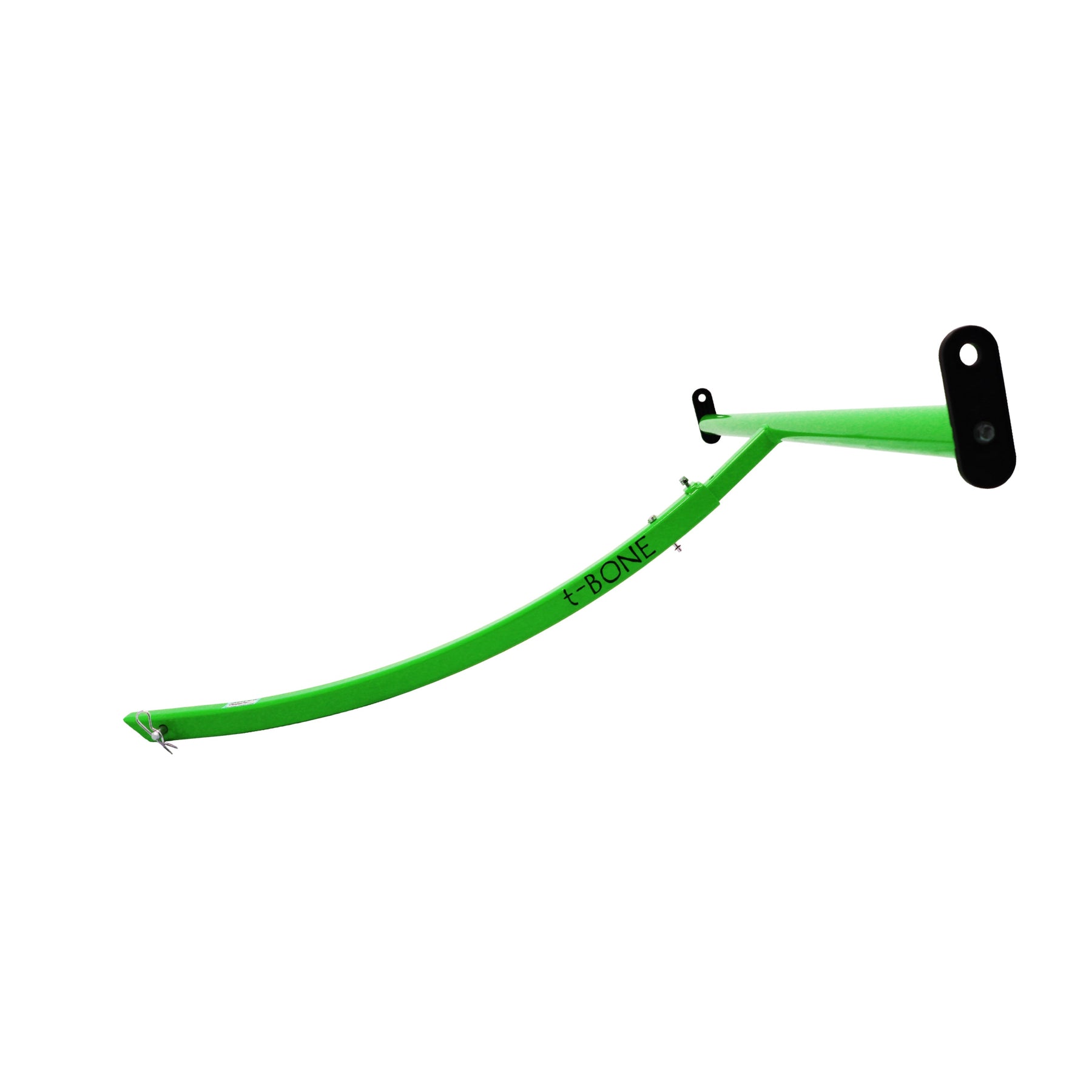

| Color Options | Orange and Lime (plus sometimes black). |
-

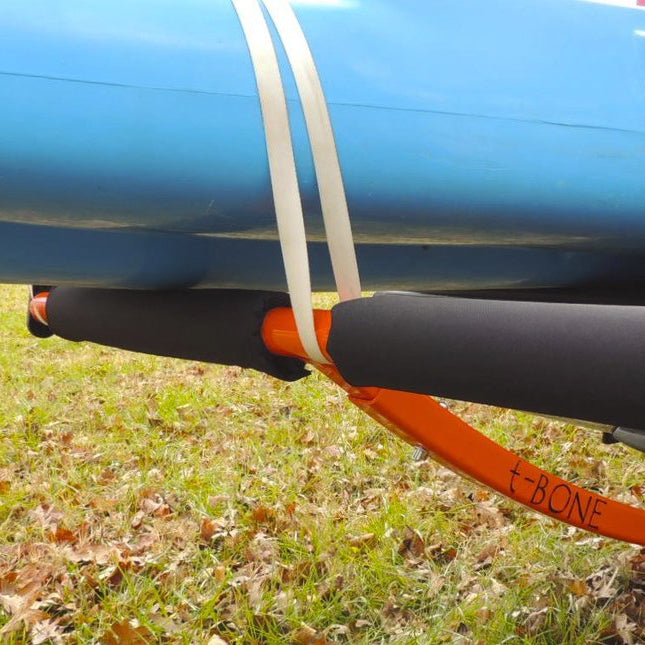

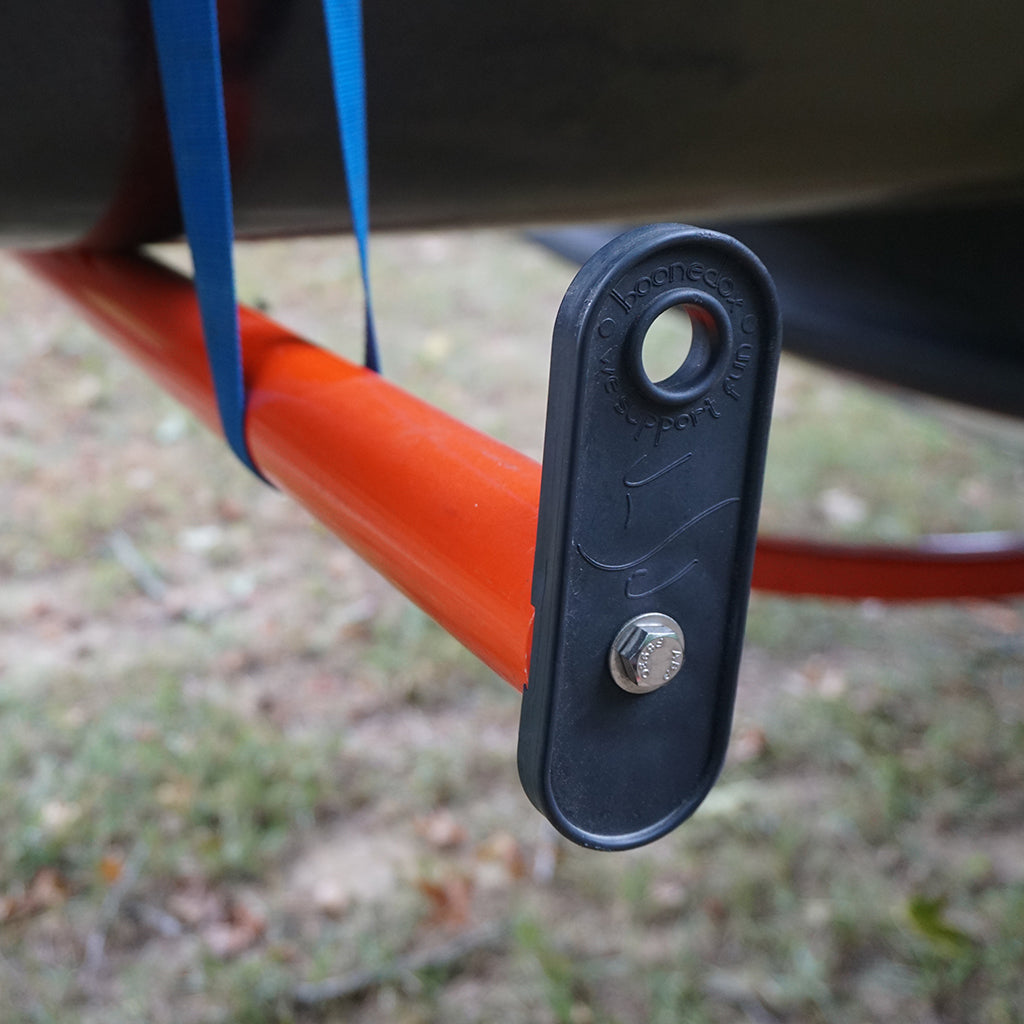

Securing the load: The “ears” (plastic parts) are not designed to handle the full strap loads. The strapping must go through the crossbar, not through those ears. Tensioning incorrectly could lead to breakage.
-
Legal/road safety: Overhangs sometimes are regulated (flags, lights). Extending cargo may require compliance with local road laws.
- Weight limits: Even though it supports 300 lb, that’s distributed weight. If concentrated loads or bouncing over rough terrain, the stress could be more.
